js拖动滑块和点击水波纹效果实例代码

    网络     2018-11-15    1323

拖动滑块效果：

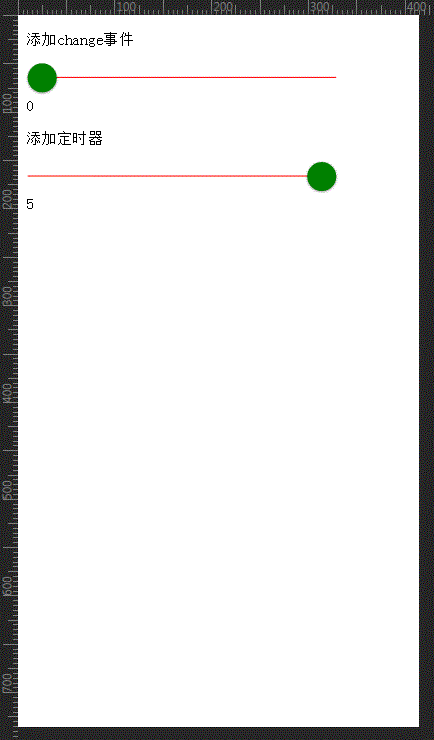

先看看效果图：

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
<!doctype html>
<html>

 <head>
  <meta charset="UTF-8" />
  <meta name="viewport" content="width=device-width,initial-scale=1,minimum-scale=1,maximum-scale=1,user-scalable=no" />
  <title>Document</title>
  <script type="text/javascript" src=""></script>

  <style type="text/css">
   input[type="range"] {
    width: 80%;
    background-color: red;
    border-radius: 15px;
    -webkit-appearance: none;
    height: 1px;
    position: relative;
    -webkit-box-sizing: border-box;
    -moz-box-sizing: border-box;
    box-sizing: border-box;
   }

   input[type="range"]::-webkit-slider-thumb {
    -webkit-appearance: none;
    background-color: green;
    border-radius: 50%;
    height: 30px;
    width: 30px;
    box-shadow: 0 1px 3px rgba(0, 0, 0, .4);
    border: none;
    position: relative;
    z-index: 10;
   }
  </style>
  <script type="text/javascript">
   $(function() {
    $(".input_1").change(function() {
     $("p.p1").text($(this).val());
    })

    setInterval(function() {
     $("p.p2").text($(".input_2").val());
    }, 0.01)
   })
  </script>
 </head>

 <body>
  <p>添加change事件</p>
  <input type="range" step="0.01" min="0" max="5" value="0">
  <p>0</p>
  <p>添加定时器</p>
  <input type="range" step="0.01" min="0" max="5" value="0">
  <p>0</p>
 </body>

</html>

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123

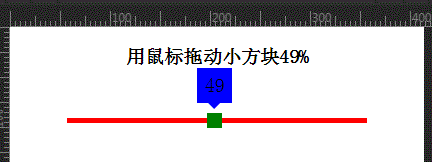

<!DOCTYPE html>
<html>

<head>
<meta http-equiv="Content-Type" content="text/html; charset=utf-8">
<meta name="viewport" content="width=device-width,initial-scale=1,minimum-scale=1,maximum-scale=1,user-scalable=no" />
<title>鼠标拖动小方块</title>
<style type="text/css">
.lineDiv {
position: relative;
height: 5px;
background: red;
width: 300px;
margin: 50px auto;
}

.lineDiv .minDiv {
position: absolute;
top: -5px;
left: 0;
width: 15px;
height: 15px;
background: green;
cursor: pointer
}

.lineDiv .minDiv .vals {
position: absolute;
font-size: 20px;
top: -45px;
left: -10px;
width: 35px;
height: 35px;
line-height: 35px;
text-align: center;
background: blue;
}

.lineDiv .minDiv .vals:after {
content: "";
width: 0px;
height: 0px;
border-top: 6px solid blue;
border-left: 6px solid transparent;
border-right: 6px solid transparent;
border-bottom: 6px solid transparent;
display: block;
margin-left: 11px;
}
</style>
</head>

<body>
<center>
<h3>用鼠标拖动小方块<span id="msg">0</span>%</h3>
</center>
<div id="lineDiv">
<div id="minDiv">
<div id="vals">0</div>
</div>
</div>
<script>
window.onload = function() {

var lineDiv = document.getElementById('lineDiv'); //长线条
var minDiv = document.getElementById('minDiv'); //小方块
var msg = document.getElementById("msg");
var vals = document.getElementById("vals");
var ifBool = false; //判断鼠标是否按下

//鼠标按下方块
minDiv.addEventListener("touchstart", function(e) {
e.stopPropagation();
ifBool = true;
console.log("鼠标按下")
});

//拖动
window.addEventListener("touchmove", function(e) {
console.log("鼠标拖动")
if(ifBool) {
var x = e.touches[0].pageX || e.touches[0].clientX; //鼠标横坐标var x
var lineDiv_left = getPosition(lineDiv).left; //长线条的横坐标
var minDiv_left = x - lineDiv_left; //小方块相对于父元素（长线条）的left值
if(minDiv_left >= lineDiv.offsetWidth - 15) {
minDiv_left = lineDiv.offsetWidth - 15;
}
if(minDiv_left < 0) {
minDiv_left = 0;
}
//设置拖动后小方块的left值
minDiv.style.left = minDiv_left + "px";
msg.innerText = parseInt((minDiv_left / (lineDiv.offsetWidth - 15)) * 100);
vals.innerText = parseInt((minDiv_left / (lineDiv.offsetWidth - 15)) * 100);
}
});
//鼠标松开
window.addEventListener("touchend", function(e) {
console.log("鼠标弹起")
ifBool = false;
});
//获取元素的绝对位置
function getPosition(node) {
var left = node.offsetLeft; //获取元素相对于其父元素的left值var left
var top = node.offsetTop;
current = node.offsetParent; // 取得元素的offsetParent
　 // 一直循环直到根元素
　　
while(current != null) {　　
left += current.offsetLeft;　　
top += current.offsetTop;　　
current = current.offsetParent;　　
}
return {
"left": left,
"top": top
};
}
}
</script>
</body>

</html>

兼容PC端和移动端

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
<!DOCTYPE html>
<html>

<head>
<meta http-equiv="Content-Type" content="text/html; charset=utf-8">
<meta name="viewport" content="width=device-width,initial-scale=1,minimum-scale=1,maximum-scale=1,user-scalable=no" />
<title>鼠标拖动小方块</title>
<style type="text/css">
.lineDiv {
position: relative;
height: 5px;
background: red;
width: 300px;
margin: 50px auto;
}

.lineDiv .minDiv {
position: absolute;
top: -5px;
left: 0;
width: 15px;
height: 15px;
background: green;
cursor: pointer
}

.lineDiv .minDiv .vals {
position: absolute;
font-size: 20px;
top: -45px;
left: -10px;
width: 35px;
height: 35px;
line-height: 35px;
text-align: center;
background: blue;
}

.lineDiv .minDiv .vals:after {
content: "";
width: 0px;
height: 0px;
border-top: 6px solid blue;
border-left: 6px solid transparent;
border-right: 6px solid transparent;
border-bottom: 6px solid transparent;
display: block;
margin-left: 11px;
}
</style>
</head>

<body>
<center>
<h3>用鼠标拖动小方块<span id="msg">0</span>%</h3>
</center>
<div id="lineDiv">
<div id="minDiv">
<div id="vals">0</div>
</div>
</div>
<script>
window.onload = function() {

var lineDiv = document.getElementById('lineDiv'); //长线条
var minDiv = document.getElementById('minDiv'); //小方块
var msg = document.getElementById("msg");
var vals = document.getElementById("vals");
var ifBool = false; //判断鼠标是否按下
//事件
var start = function(e) {
e.stopPropagation();
ifBool = true;
console.log("鼠标按下")
}
var move = function(e) {
console.log("鼠标拖动")
if(ifBool) {
if(!e.touches) { //兼容移动端
var x = e.clientX;
} else {  //兼容PC端
var x = e.touches[0].pageX;
}
//var x = e.touches[0].pageX || e.clientX; //鼠标横坐标var x
var lineDiv_left = getPosition(lineDiv).left; //长线条的横坐标
var minDiv_left = x - lineDiv_left; //小方块相对于父元素（长线条）的left值
if(minDiv_left >= lineDiv.offsetWidth - 15) {
minDiv_left = lineDiv.offsetWidth - 15;
}
if(minDiv_left < 0) {
minDiv_left = 0;
}
//设置拖动后小方块的left值
minDiv.style.left = minDiv_left + "px";
msg.innerText = parseInt((minDiv_left / (lineDiv.offsetWidth - 15)) * 100);
vals.innerText = parseInt((minDiv_left / (lineDiv.offsetWidth - 15)) * 100);
}
}
var end = function(e) {
console.log("鼠标弹起")
ifBool = false;
}
//鼠标按下方块
minDiv.addEventListener("touchstart", start);
minDiv.addEventListener("mousedown", start);
//拖动
window.addEventListener("touchmove", move);
window.addEventListener("mousemove", move);
//鼠标松开
window.addEventListener("touchend", end);
window.addEventListener("mouseup", end);
//获取元素的绝对位置
function getPosition(node) {
var left = node.offsetLeft; //获取元素相对于其父元素的left值var left
var top = node.offsetTop;
current = node.offsetParent; // 取得元素的offsetParent
　 // 一直循环直到根元素
　　
while(current != null) {　　
left += current.offsetLeft;　　
top += current.offsetTop;　　
current = current.offsetParent;　　
}
return {
"left": left,
"top": top
};
}
}
</script>
</body>

</html>

设置滑块的滑动范围

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
<!DOCTYPE html>
<html>
<head>
<meta http-equiv="Content-Type" content="text/html; charset=utf-8">
<meta name="viewport" content="width=device-width,initial-scale=1,minimum-scale=1,maximum-scale=1,user-scalable=no" />
<title>鼠标拖动小方块</title>
<style type="text/css">
.lineDiv {
position: relative;
height: 5px;
background: red;
width: 95%;
margin: 50px auto;
}

.lineDiv .minDiv {
position: absolute;
top: -15px;
left: 0;
width: 35px;
height: 35px;
background: green;
cursor: pointer;
transition: all 0s;
}

.lineDiv .vals {
z-index: 100;
position: absolute;
top: 0px;
left: 0px;
width: 0px;
height: 5px;
background: blue;
}
</style>
</head>

<body>
<center>
<h3>用鼠标拖动小方块<span id="msg">0</span>%</h3>
</center>
<div id="lineDiv">
<div id="vals"></div>
<!-- -->
<div id="minDiv"></div>
<!-- -->
</div>
<script>
window.onload = function() {

var lineDiv = document.getElementById('lineDiv'); //长线条
var minDiv = document.getElementById('minDiv'); //小方块
var minVals = document.getElementById('vals'); //左长线
var msg = document.getElementById("msg"); //最上面的信息
var ifBool = false; //判断滑块是否按下

var lineDiv_W = getPosition(lineDiv).width; //长线的长度
var lineDiv_L = getPosition(lineDiv).left; //长线距离html的left

var minDiv_W = getPosition(minDiv).width; //滑块的长度
var minDiv_L = getPosition(minDiv).left; //滑块距离html的left

var Slider_W_MAX = lineDiv_W - minDiv_W; //滑块可以滑动的最大值px，范围是0~Slider_W_MAX

var minNum = 0; //最小值
var maxNum = 500; //最大值

var startNum = 100; //起始值
var endNum = 400; //结束值

var min_Px = Slider_W_MAX / maxNum * startNum; //滑块可以滑动的最小px
var max_Px = Slider_W_MAX / maxNum * endNum; //滑块可以滑动的最大px

var minDiv_left=0; //当前滑块的位置
/*
 Slider_W_MAX  1元对应的px？     1
  maxNum    1   1px对应的金额？
*/

function initSlider(initPX) { //设置滑块的初始位置
console.log(initPX);
minDiv_left=initPX; //设置滑块的位置
minDiv.style.left = initPX + "px";
minVals.style.width = initPX + "px";
msg.innerText = parseInt(initPX / Slider_W_MAX * 100);
}

(function() { //初始化滑块位置
if(startNum >= 0) { //求出startNum对应的px
initSlider(Slider_W_MAX / maxNum * startNum)
}
})()

//事件
var start = function(e) {
ifBool = true;
//console.log("鼠标按下")
}
var move = function(e) {
//console.log("鼠标拖动")
if(ifBool) {
var x; //记录滑块距离html的距离left
if(!e.touches) { //兼容PC端
x = e.clientX;
} else { //兼容移动端
x = e.touches[0].pageX;
}

minDiv_left = x - lineDiv_L; //小方块相对于父元素（长线条）的left值
if(minDiv_left >= Slider_W_MAX) {
minDiv_left = Slider_W_MAX;
}
if(minDiv_left < 0) {
minDiv_left = 0;
}

//设置拖动后小方块的left值
initSlider(minDiv_left)

}
}
var end = function(e) {
if(minDiv_left>max_Px){
initSlider(max_Px);
}
if(minDiv_left<min_Px){
initSlider(min_Px);
}
ifBool = false;
}
//鼠标按下方块
minDiv.addEventListener("touchstart", start);
minDiv.addEventListener("mousedown", start);
//拖动
window.addEventListener("touchmove", move);
window.addEventListener("mousemove", move);
//鼠标松开
window.addEventListener("touchend", end);
window.addEventListener("mouseup", end);

//获取元素的绝对位置
function getPosition(node) {
var width = node.offsetWidth; //元素宽度
var height = node.offsetHeight; //元素高度
var left = node.offsetLeft; //获取元素相对于其根元素的left值var left
var top = node.offsetTop; //获取元素相对于其根元素的top值var top
current = node.offsetParent; // 取得元素的offsetParent

// 一直循环直到根元素　　
while(current != null) {　　
left += current.offsetLeft;　　
top += current.offsetTop;　　
current = current.offsetParent;　　
}
return {
"width": width,
"height": height,
"left": left,
"top": top
};
}
}
</script>
</body>

</html>

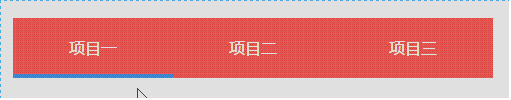

点击水波纹效果：

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
<!DOCTYPE html>
<html>
 <head>
  <meta http-equiv="Content-Type" content="text/html; charset=UTF-8">
  <title>JS</title>
  <link rel="stylesheet" type="text/css" href="css/reset.css" rel="external nofollow" />
  <script type="text/javascript" src=""></script>
  <style type="text/css" media="screen">
   ul {
    font-size: 0;
    position: relative;
    padding: 0;
    width: 480px;
    margin: 40px auto;
    user-select: none;
   }

   li {
    display: inline-block;
    width: 160px;
    height: 60px;
    background: #E95546;
    font-size: 16px;
    text-align: center;
    line-height: 60px;
    color: white;
    text-transform: uppercase;
    position: relative;
    overflow: hidden;
    cursor: pointer;
   }

   .slider {
    display: block;
    position: absolute;
    bottom: 0;
    left: 0;
    height: 4px;
    background: #1685D3;
    transition: all 0.5s;
   }

   .ripple {
    width: 0;
    height: 0;
    border-radius: 50%;
    background: rgba(255, 255, 255, 0.4);
    -webkit-transform: scale(0);
    -ms-transform: scale(0);
    transform: scale(0);
    position: absolute;
    opacity: 1;
   }

   .rippleEffect {
    -webkit-animation: rippleDrop .4s linear;
    animation: rippleDrop .4s linear;
   }

   @-webkit-keyframes rippleDrop {
    100% {
     -webkit-transform: scale(2);
     transform: scale(2);
     opacity: 0;
    }
   }

   @keyframes rippleDrop {
    100% {
     -webkit-transform: scale(2);
     transform: scale(2);
     opacity: 0;
    }
   }
  </style>

 </head>
 <body>
  <ul>
   <li>项目一</li>
   <li>项目二</li>
   <li>项目三</li>
   <li class="slider"></li>
  </ul>
 </body>
 <script>
  $("ul li").click(function(e) {

   if($(this).hasClass('slider')) {
    return;
   }

   var whatTab = $(this).index();

   var howFar = 160 * whatTab;

   $(".slider").css({
    left: howFar + "px"
   });

   $(".ripple").remove();

   var posX = $(this).offset().left,
    posY = $(this).offset().top,
    buttonWidth = $(this).width(),
    buttonHeight = $(this).height();
   console.log(posX, posY, buttonWidth, buttonHeight)

   $(this).append("<span class='ripple'></span>");

   if(buttonWidth >= buttonHeight) {
    buttonHeight = buttonWidth;
   } else {
    buttonWidth = buttonHeight;
   }

   var x = e.pageX - posX - buttonWidth / 2;
   var y = e.pageY - posY - buttonHeight / 2;

   $(".ripple").css({
    width: buttonWidth,
    height: buttonHeight,
    top: y + 'px',
    left: x + 'px'
   }).addClass("rippleEffect");

  });
 </script>

</html>


  分享到：

上一篇：一不小心把红字发票认证了,网上申报通不过了怎么办?

下一篇：Javascript中parseInt的正确使用方式

热门文章

随机文章

友情
链接
甘肃明星软件公司
北京神州祥龙科技公司
神州祥龙在线财务
百度
360搜索
腾讯
IT资讯
IT网易科技
华军软件园
天空下载

Copyright @甘肃明星软件开发有限公司

全国统一服务热线：400-633-9193

E-mail：417560663@qq.com

网站备案：陇ICP备2021002704号-1

甘公网安备 62010202002545号

0.2261s
